Authorized TCL HVAC Distributor · Woburn, MA

Heating & Cooling.
Built Different.

Ventrix Supply brings contractors and builders the full TCL HVAC lineup — with instant spec access and competitive wholesale pricing across New England.

Explore Products Request Account Get a Quote

Scroll

Mass SaveRebate

NEHPARebate

Single-Zone Multi-Zone

TCL · Single-Zone / Multi-Zone · Mini-Split

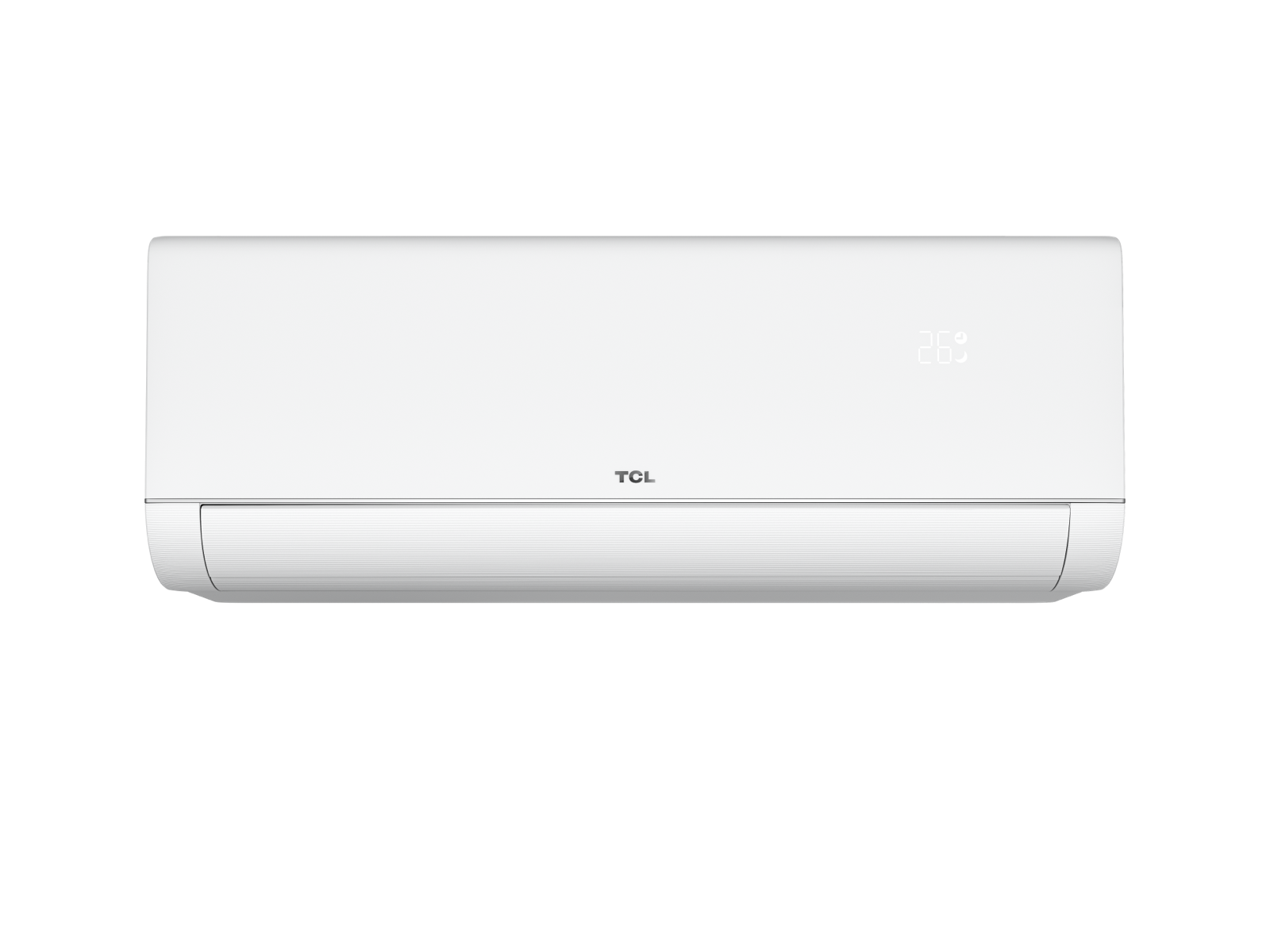

BreezeIN
Series

Extreme Cooling with auto Self-Cleaning and Gentle Breeze mode. AHRI Certified & Energy Star. Google Home and Alexa compatible.

9K 12K 18K 24K

Model: H09SBH23XP

Capacity Range9,000 – 24,000 BTU/h

SEER2 RatingUp to 24.0

HSPF2Up to 10.0

Min. Heating Temp-13°F (-25°C)

RefrigerantR-454b

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

TCL · Flagship · Energy Star Most Efficient 2025

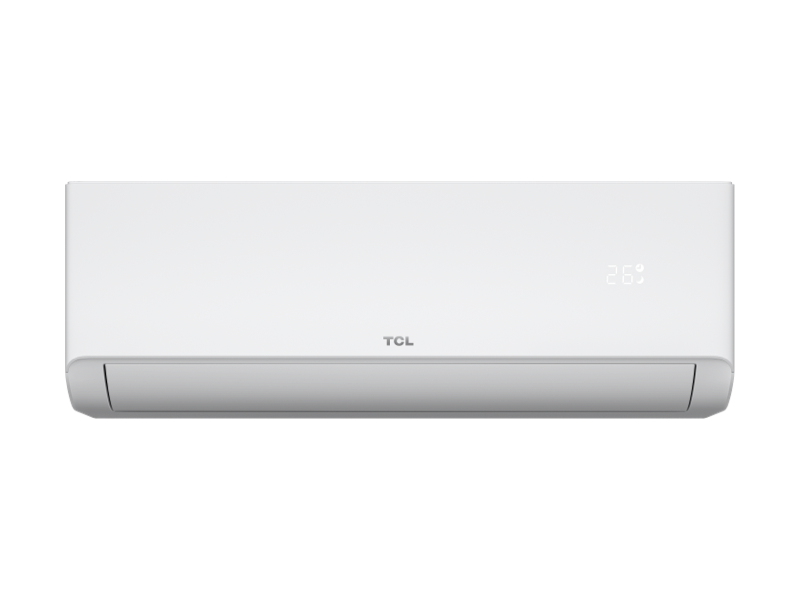

Ultimate 25
Series

TCL's highest-efficiency mini-split. SEER2 up to 25.0, HSPF2 up to 10.5, operating down to -22°F. Deep Self-Cleaning. Energy Star Most Efficient 2025. Google Home & Alexa.

9K 12K 18K 24K

Model: H09SUH25XG

Capacity Range9,000 – 24,000 BTU/h

SEER2 RatingUp to 25.0

HSPF2Up to 10.5

Min. Heating Temp-22°F (-30°C)

RefrigerantR-454b

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

Mass SaveRebate

NEHPARebate

TCL · Single-Zone · Smart Comfort

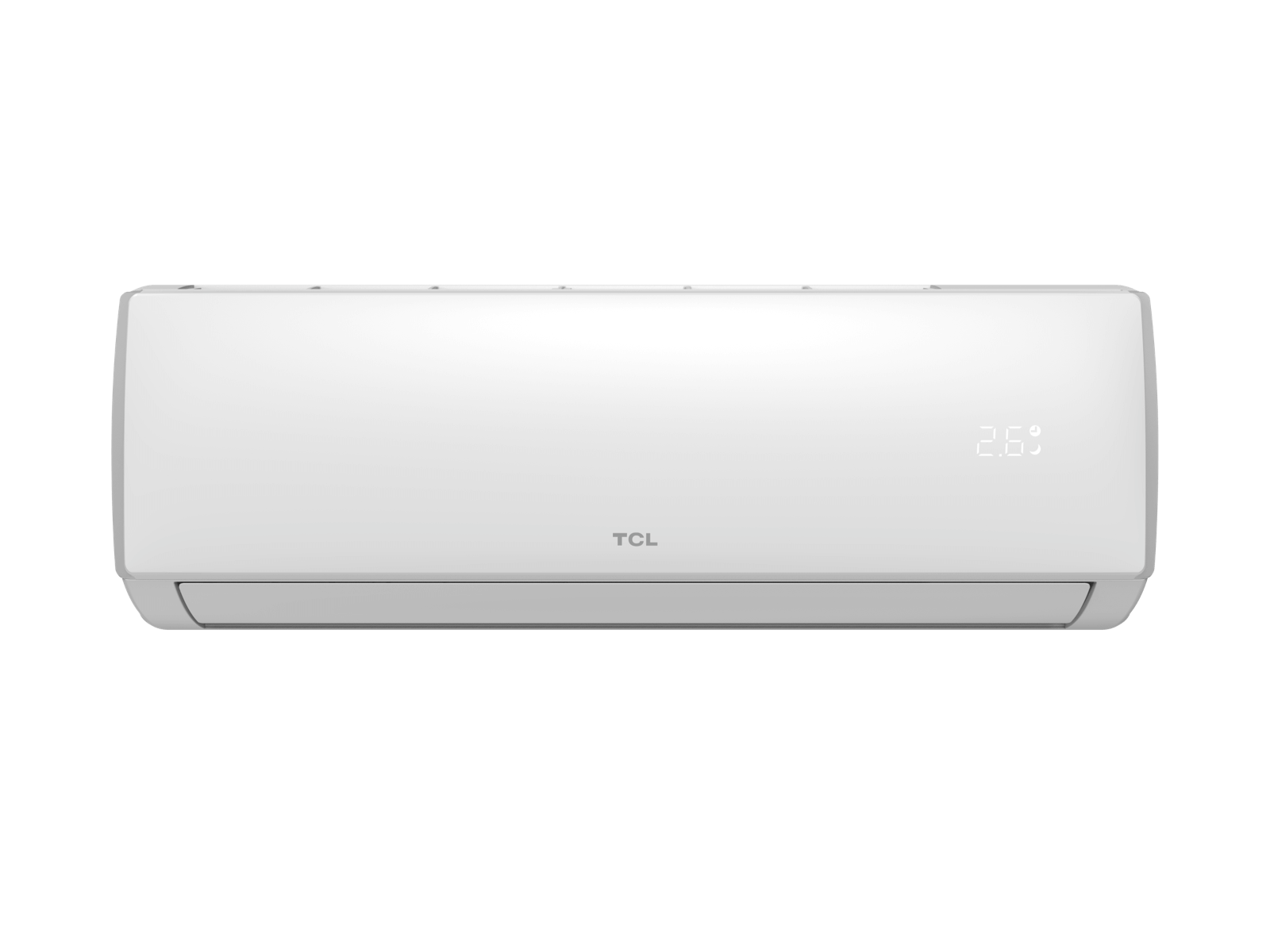

Elite
Series

Rapid Cooling with natural unbounded airflow and iFeel sensor for personalized comfort. AHRI Certified & Energy Star. 36K BTU capacity.

36K

Model: H36SEH19XA

Capacity36,000 BTU/h

SEER2 RatingUp to 23.0

HSPF2Up to 10.0

Min. Heating Temp-4°F (-20°C)

RefrigerantR-454b

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

TCL · Fresh Air · Premium

FreshIN 3.0
Series

Patented liftable fresh air inlet with QuadruPuri four-stage filtration — Preliminary, Silver Ion Antibacterial, HEPA, and High-Density. Real-time TVOC air quality display. Google Home & Alexa.

12K

Model: H12SFH25XP

Capacity12,000 BTU/h

SEER2 / EER224.0 / 13.0

HSPF2 / COP9.5 / 4.2

Min. Heating Temp-4°F (-20°C)

RefrigerantR-32

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

Mass SaveRebate

NEHPARebate

Mass SaveRebate

NEHPARebate

Ducted

TCL · Ducted Inverter · Heat Pump

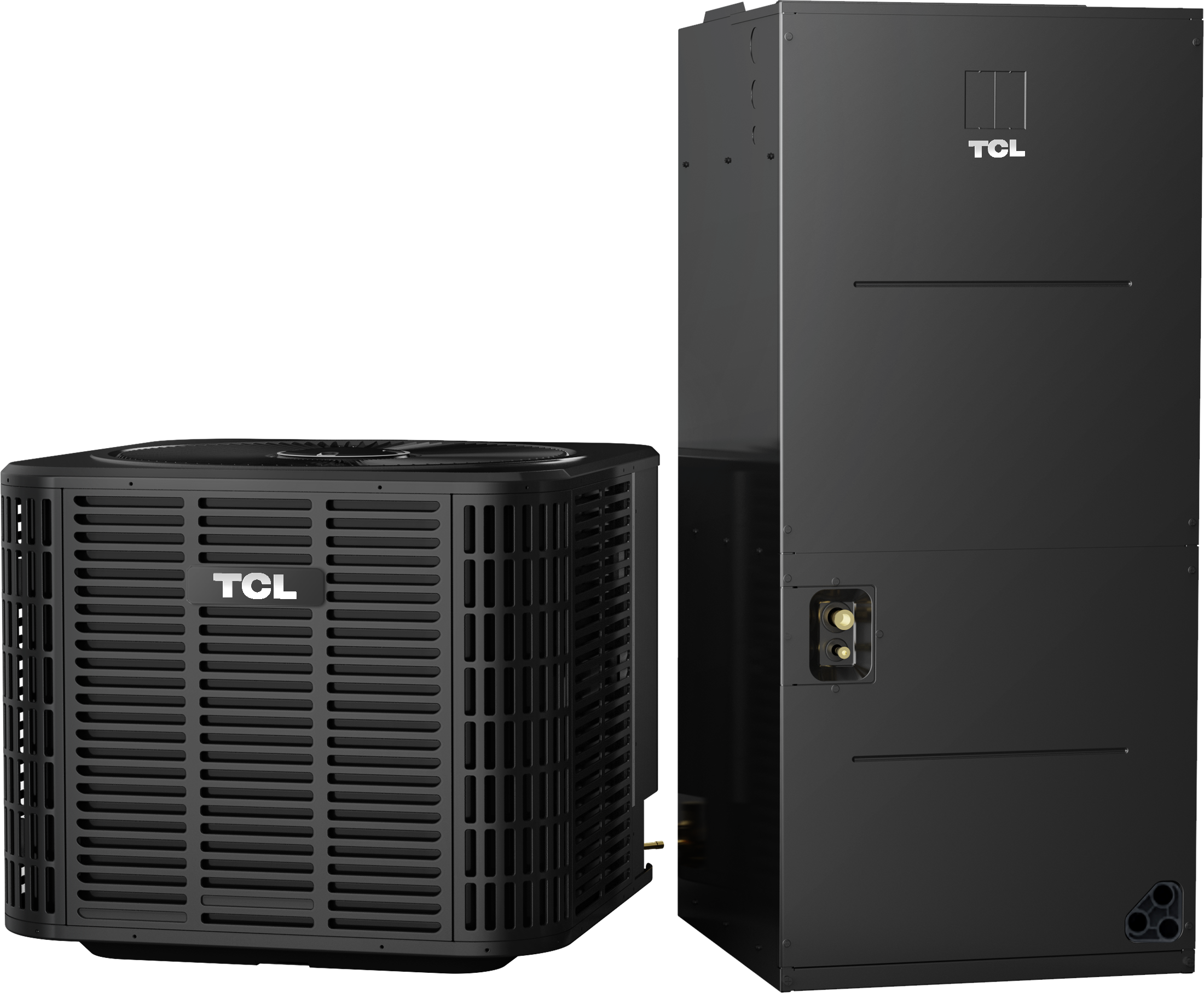

Advantage
Series

DC Inverter ducted heat pump with 24V thermostat and RS485 compatibility. Multi-Protection built-in. Residential 10-year parts and compressor warranty.

24K 36K 48K 60K

Model: H24TDH17XAC + H24AHH17XAE

Capacity Range24,000 – 60,000 BTU/h

SEER2 RatingUp to 19.0

HSPF2Up to 9.3

Min. Heating Temp-5°F (-20°C)

RefrigerantR-454b

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

Multi-Zone

TCL · Multi-Zone System

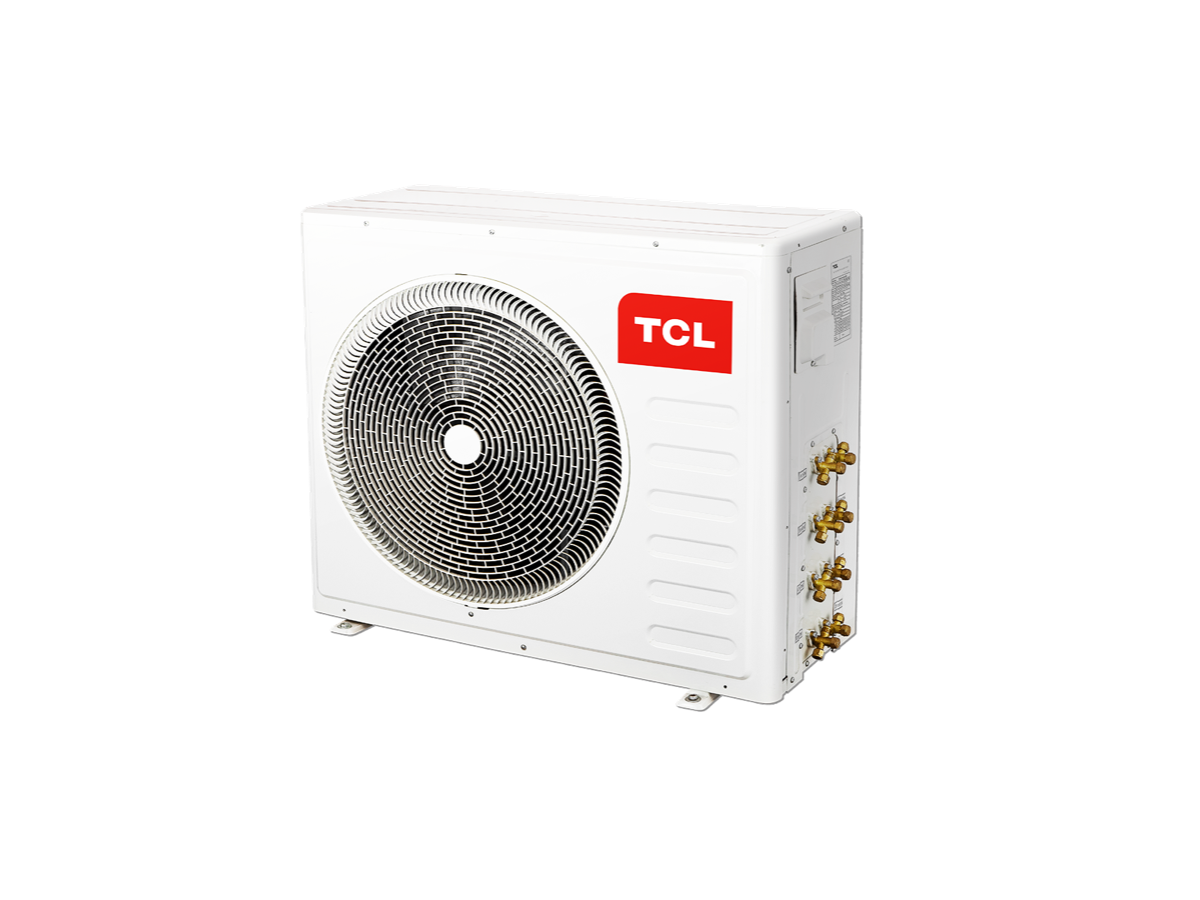

Multi Match
Series

Full DC inverter design with Smart Defrosting and multiple protection systems. Mix and match indoor unit styles on a single outdoor unit. AHRI Certified & Energy Star.

18K 27K 36K 42K

Model: H18FMH22XPC

Max Indoor Units1 to 2

Cooling Ambient Range5°F – 133°F

Heating Ambient Range-13°F – 86°F

CompressorFull DC Inverter

Smart DefrostingIncluded

ProtectionsVoltage / Overheat / Overcurrent

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

Mass SaveRebate

NEHPARebate

Mass SaveRebate

‹

›

Wall Mount

Multi-Zone

TCL · Multi-Match Indoor Units

Multi-Match
Indoor Units

Mix and match indoor unit styles on a single Multi-Match outdoor unit. Wall mount, ceiling, ducted, and cassette options available.

9K 12K 18K 24K

Model: H09SBH23XPE

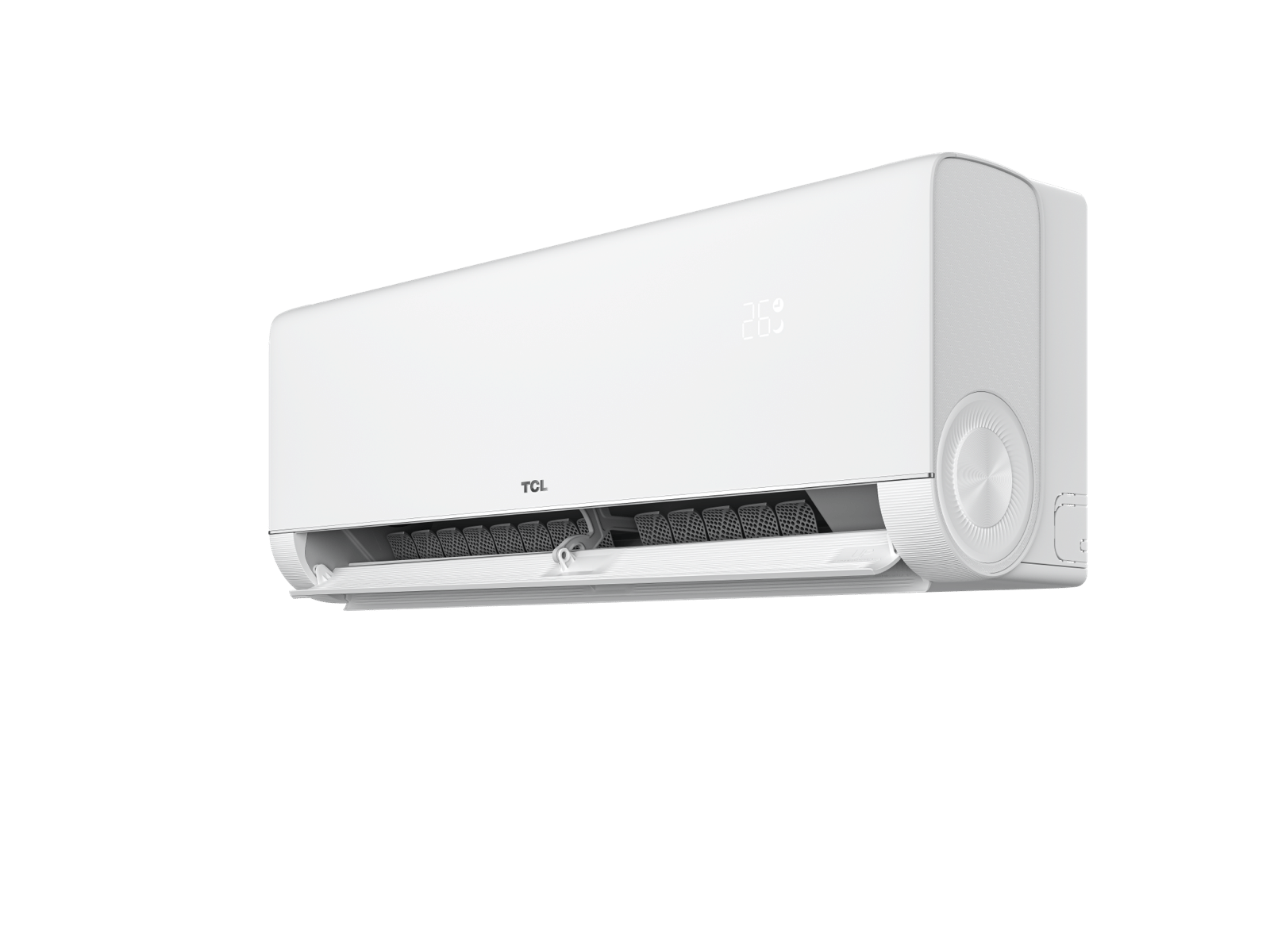

TypeWall Mount

Capacity Range9,000 – 24,000 BTU/h

CompressorFull DC Inverter

RefrigerantR-454b

Compatible WithMulti-Match Outdoor Units

Warranty10yr Parts / 10yr Compressor

View Spec Sheet Get Quote

Ventrix Supply · Own Brand

Installation Accessories

Everything needed to complete the install — sourced, tested, and branded by Ventrix Supply.

🔩

Ventrix · Mounting

Installation Brackets & Bases

Heavy-duty galvanized steel brackets and pad bases for TCL outdoor units. Wall-mount, rooftop, and ground-level configurations.

MaterialGalvanized Steel

Max LoadUp to 400 lbs

FinishPowder Coated

TypesWall · Roof · Ground

Request Pricing

🔧

Ventrix · Refrigeration

Copper Line Sets & Fittings

ACR-grade copper tubing pre-insulated and ready for direct connection. Available in standard lengths and custom cuts.

GradeACR Copper

Sizes¼″ – ⅝″ OD

InsulationPre-Insulated

Lengths15 ft · 25 ft · Custom

Request Pricing

📦

Ventrix · Finishing

Lineset Cover & Raceways

UV-resistant PVC line-hide covers protecting refrigerant tubing and wiring on exterior walls. White and paintable finishes.

MaterialUV-Resistant PVC

Widths2.5″ · 3.5″ · 4.5″

FinishWhite / Paintable

CompatibilityAll TCL Series

Request Pricing

Why Ventrix Supply

Built for the Trade.

Everything contractors and builders need — and nothing they don't.

📋

Instant Spec Sheets

Download full technical documentation, dimensional drawings, and installation guides for every TCL unit.

📦

Local Warehouse Stock

Woburn, MA inventory means fast fulfillment. No long lead times on standard residential and commercial units.

💲

Wholesale Trade Pricing

Competitive pricing for licensed contractors, with volume discounts available for larger builds.

🎓

TCL + NEI Training

Hands-on installation certification in partnership with NEI and TCL, right in Greater Boston.

🔧

Expert Tech Support

Our certified technicians answer spec questions and help you select the right unit for any project.

📍

New England Coverage

Serving MA, NH, and the broader New England region from our Woburn headquarters.
